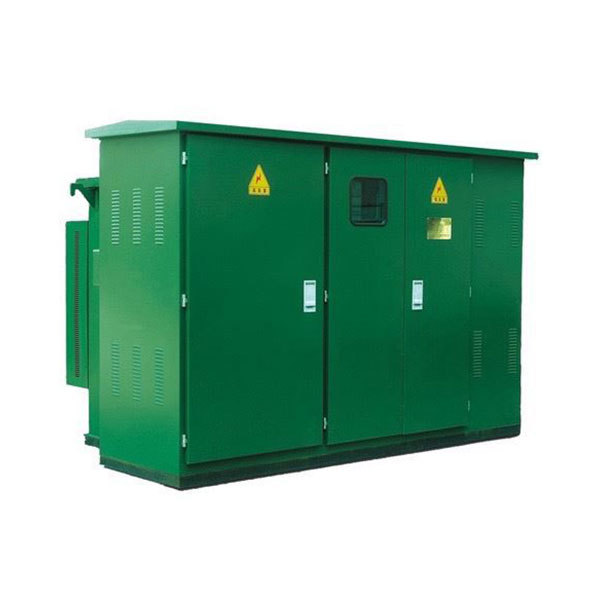

- Commodity name: American Box Type Substation
Box-type substation (referred to as box-type substation) is a compact package that combines high-voltage switchgear distribution transformers, low-voltage switchgear, electric energy metering equipment and reactive power compensation devices in one or several boxes according to a certain wiring scheme. Electric device. It is suitable for use in a three-phase AC system with a rated voltage of 10/0.4KV as a circuit and distribution of electric energy.
Box-type substation
Box-type substation (referred to as box-type substation) is a compact package that combines high-voltage switchgear distribution transformers, low-voltage switchgear, electric energy metering equipment and reactive power compensation devices in one or several boxes according to a certain wiring scheme. Electric device. It is suitable for use in a three-phase AC system with a rated voltage of 10/0.4KV as a circuit and distribution of electric energy.
Compared with the European style box change of the same capacity, the structure of the American box change is more reasonable. From the layout point of view of the American box substation, its low-voltage room, transformer room, and high-voltage room are not arranged in a mesh type, but in a pin type. From the structural point of view, this box-type variable is divided into front and rear two parts. The front is the high and low voltage operation interval. The operation interval includes high and low voltage connection terminals, load switch operation handle, no-load voltage regulation section switch, and plug-in fuse The rear part is the fuel tank and heat sink, and the transformer winding, iron core, high-voltage load switch and fuse are placed in the transformer tank.
