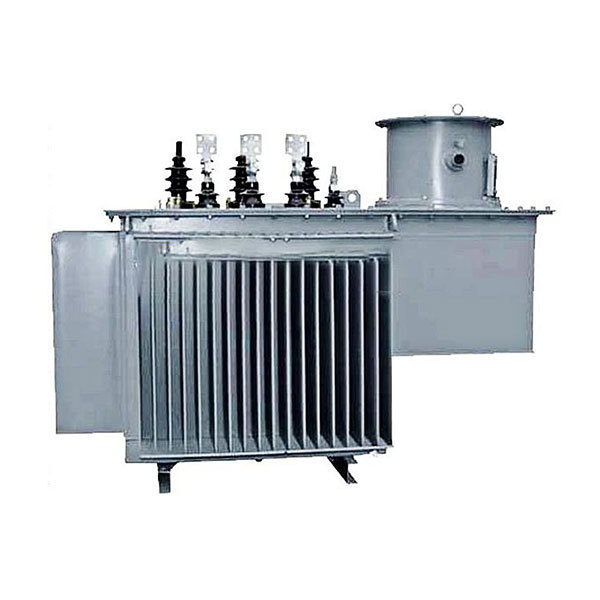

SZ11/SZ13 Series On-Load Tapping Transformer
Keywords:
SZ11/SZ13 Series On-Load Tapping Transformer
产品描述
- 产品描述
-
- Commodity name: SZ11/SZ13 Series On-Load Tapping Transformer
The 35kV sz11/sz13 oil-immersed power transformer adopts new materials, new technology, new structure, optimized design and careful manufacturing. The core material is made of high-quality silicon steel sheets with high magnetic permeability and low loss. The structure is a rigid frame structure with good stability, low noise and strong short-circuit resistance.
The 35kV sz11/sz13 oil-immersed power transformer adopts new materials, new technology, new structure, optimized design and careful manufacturing.
The core material is made of high-quality silicon steel sheets with high magnetic permeability and low loss. The structure is a rigid frame structure with good stability, low noise and strong short-circuit resistance.
The winding adopts high-quality oxygen-free copper wire, which has good conductivity and low load loss. The winding is designed with advanced longitudinal oil channel structure, which has good heat dissipation effect, high electrical insulation strength and good impact resistance.
The body is compressed with high-strength electrical laminate, all leads are firmly clamped, and the structure is scientific and reasonable.
Plateau reinforced casing, suitable for high altitude areas.
This series of transformers is equipped with a full range of protection devices, with advanced technical performance, energy saving, environmental protection, safety and reliability
Structural features:
1. On-load voltage regulation, high reliability, advanced performance, and reasonable economic indicators;
2. The iron core adopts stepped three-stage joints, and the surface is coated with curing paint, which reduces the loss and noise;
3. The winding structure is novel, the oil passage design is reasonable, and the new insulation structure is adopted to improve the mechanical strength and short-circuit resistance;
4. The fuel tank has various forms, beautiful and generous.
